Panasonic Electronic Components
CAP ALUM 33000UF 20% 16V SNAP

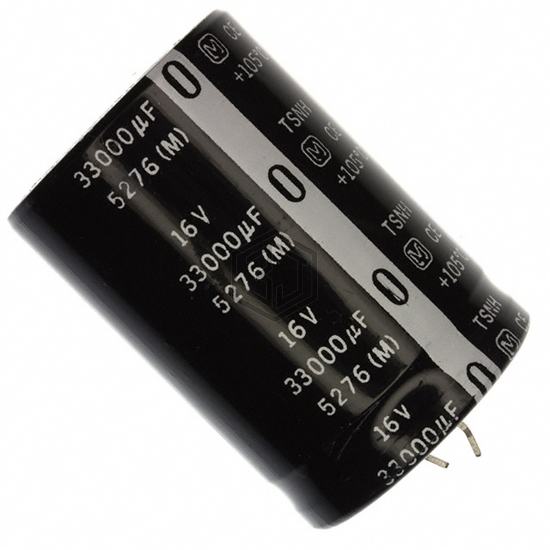

ECE-S1CG333Z is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 33000UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 7,805
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.52 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECE-S1CG333Z is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215875333E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33000UF 20% 16V SNAP | 94% | View |
| LGY1C333MELB45 | Nichicon | CAP ALUM 33000UF 20% 16V SNAP | 91% | View |
| EKMH160VQT333MB25U | United Chemi-Con | CAP ALUM 33000UF 20% 16V SNAP | 85% | View |
| MAL205844333E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33000UF 20% 10V SNAP | 75% | View |
| ALC80A333CF025 | KEMET | CAP ALUM 33000UF 20% 25V SNAP | 56% | View |
| EKMH6R3VNN333MQ50U | United Chemi-Con | CAP ALUM 33000UF 20% 6.3V SNAP | 56% | View |
Submit your RFQ for ECE-S1CG333Z and get a quote within 24 hours.
