Panasonic Electronic Components

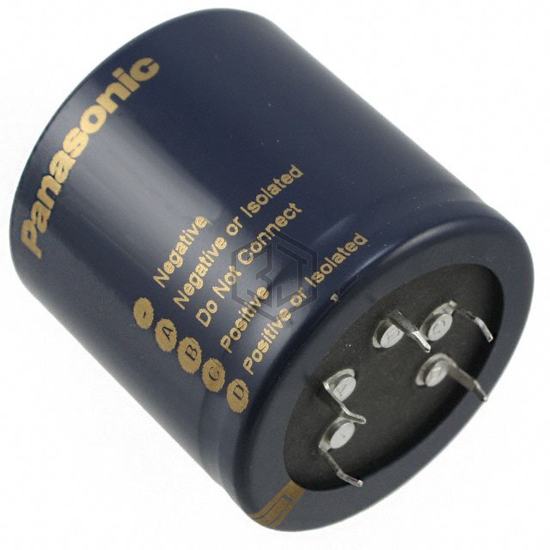

CAP ALUM 6800UF 20% 200V SNAP
ECE-P2DP682HA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 6800UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 200 V, package / case Radial, Can - Snap-In - 5 Lead.
In Stock: 4,960
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 32mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 11.41 A @ 120 Hz |
| Ripple Current @ High Frequency | 15.97 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.984" (25.00mm) |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 3.150" (80.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 5 Lead |
ECE-P2DP682HA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 382LX682M200N102 | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 200V SNAP | 87% | View |
| MLSG682M020JA0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 20V FLATPACK | 62% | View |
| VHT6800M25 | NTE Electronics, Inc | CAP ALUM 6800UF 20% 25V RADIAL | 56% | View |
| SLP682M035A7P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 35V SNAP | 56% | View |
| SLP682M063H7P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 63V SNAP | 56% | View |
| 50MXC6800MEFCSN35X30 | Rubycon | CAP ALUM 6800UF 20% 50V SNAP | 56% | View |
Submit your RFQ for ECE-P2DP682HA and get a quote within 24 hours.
