Panasonic Electronic Components
CAP ALUM 10000UF 20% 200V SNAP

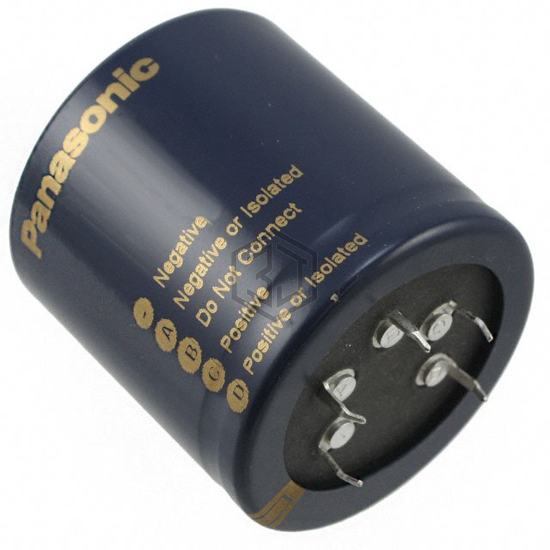

ECE-P2DP103HA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 10000UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 200 V, package / case Radial, Can - Snap-In - 5 Lead.
In Stock: 6,707
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 21mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 14.17 A @ 120 Hz |
| Ripple Current @ High Frequency | 19.84 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.984" (25.00mm) |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 4.134" (105.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 5 Lead |
ECE-P2DP103HA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VHT10000M16 | NTE Electronics, Inc | CAP ALUM 10000UF 20% 16V RADIAL | 56% | View |
| 16WXA10000MEFCGC18X25 | Rubycon | CAP ALUM 10000UF 20% 16V RADIAL | 56% | View |
| ESMH350VSS103MA20M | United Chemi-Con | CAP ALUM 10000UF 20% 35V SNAP | 56% | View |
| LP103M016C1P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 16V SNAP | 56% | View |
| 109RZM6R3M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10000UF 20% 6.3V RADIAL | 56% | View |
| LP103M063H9P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 63V SNAP | 56% | View |
Submit your RFQ for ECE-P2DP103HA and get a quote within 24 hours.
