Panasonic Electronic Components
CAP ALUM 8200UF 20% 200V SNAP

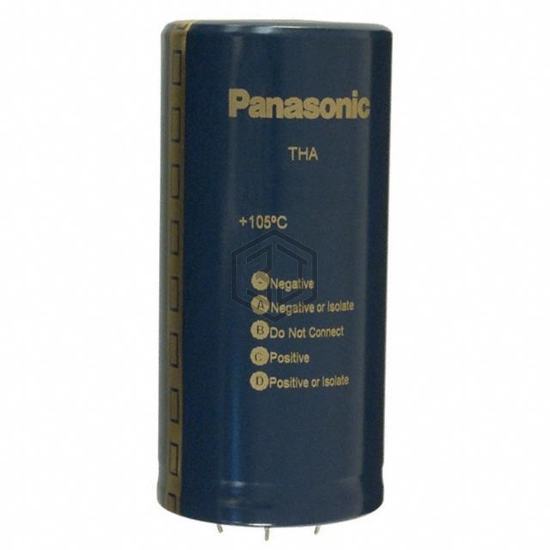

ECE-P2DA822HA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 8200UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In - 5 Lead.
In Stock: 2,885
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 28mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 9.56 A @ 120 Hz |
| Ripple Current @ High Frequency | 13.38 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.984" (25.00mm) |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 4.134" (105.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 5 Lead |
ECE-P2DA822HA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 383LX822M200B102VS | Cornell Dubilier Electronics (CDE) | CAP ALUM 8200UF 20% 200V SNAP | 100% | View |
| ALC80E822KP200 | KEMET | CAP ALUM 8200UF 20% 200V SNAP | 90% | View |
| ALC80H822KP200 | KEMET | CAP ALUM 8200UF 20% 200V SNAP | 90% | View |
| ALC80G822KP200 | KEMET | CAP ALUM 8200UF 20% 200V SNAP | 90% | View |
| ALC80C822EH100 | KEMET | CAP ALUM 8200UF 20% 100V SNAP | 71% | View |
| ALC80D822EH100 | KEMET | CAP ALUM 8200UF 20% 100V SNAP | 71% | View |
Submit your RFQ for ECE-P2DA822HA and get a quote within 24 hours.
