Panasonic Electronic Components

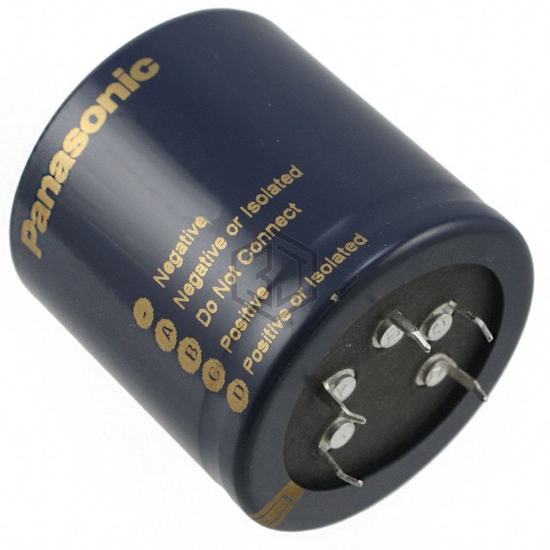

CAP ALUM 15000UF 20% 100V SNAP
ECE-P2AP153HA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 15000UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Snap-In - 5 Lead.
In Stock: 2,959
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 22mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 10.07 A @ 120 Hz |
| Ripple Current @ High Frequency | 11.58 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.984" (25.00mm) |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 2.480" (63.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 5 Lead |
ECE-P2AP153HA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKG1K153MKNF | Nichicon | CAP ALUM 15000UF 20% 80V SOLDER | 77% | View |
| ESMH630VNN153MA63U | United Chemi-Con | CAP ALUM 15000UF 20% 63V SNAP | 69% | View |
| ESMH630VSN153MA63U | United Chemi-Con | CAP ALUM 15000UF 20% 63V SNAP | 69% | View |
| ESMH500VNN153MA45U | United Chemi-Con | CAP ALUM 15000UF 20% 50V SNAP | 56% | View |
| ESMH500VNN153MA45W | United Chemi-Con | CAP ALUM 15000UF 20% 50V SNAP | 56% | View |
| A751101 | EXXELIA Sic Safco | CAP ALUM 15000F 20%50V RECTANGUL | 54% | View |
Submit your RFQ for ECE-P2AP153HA and get a quote within 24 hours.
