Panasonic Electronic Components

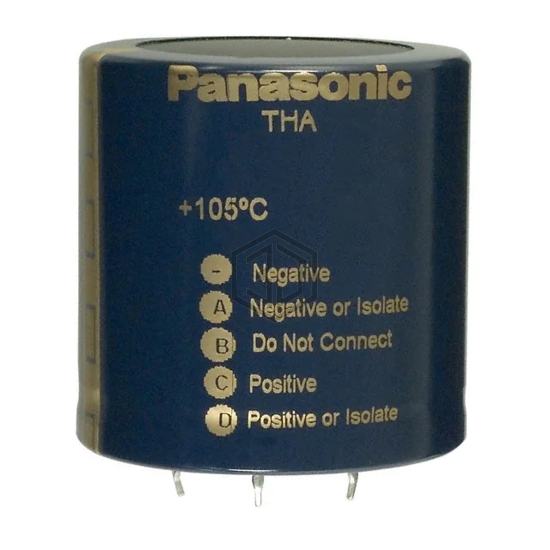

CAP ALUM 8200UF 20% 100V SNAP
ECE-P2AA822HA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 8200UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - Snap-In - 5 Lead.
In Stock: 4,906
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 30mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 6.14 A @ 120 Hz |
| Ripple Current @ High Frequency | 7.061 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.984" (25.00mm) |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 5 Lead |
ECE-P2AA822HA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECE-T2AA822EA | Panasonic Electronic Components | CAP ALUM 8200UF 20% 100V SNAP | 93% | View |
| EKMH800VSN822MA63U | United Chemi-Con | CAP ALUM 8200UF 20% 80V SNAP | 79% | View |
| B41605E8818M8S1 | EPCOS - TDK Electronics | CAP ALUM 8100UF 20% 63V RADIAL | 69% | View |
| B41605E8818M8 | EPCOS - TDK Electronics | CAP ALUM 8100UF 20% 63V RADIAL | 69% | View |
| B41888C4828M | EPCOS - TDK Electronics | CAP ALUM 8200UF 20% 16V RADIAL | 55% | View |
| EKZN160ELL822MLP1S | United Chemi-Con | CAP ALUM 8200UF 20% 16V RADIAL | 54% | View |
Submit your RFQ for ECE-P2AA822HA and get a quote within 24 hours.
