Panasonic Electronic Components
CAP ALUM 22000UF 20% 100V SNAP

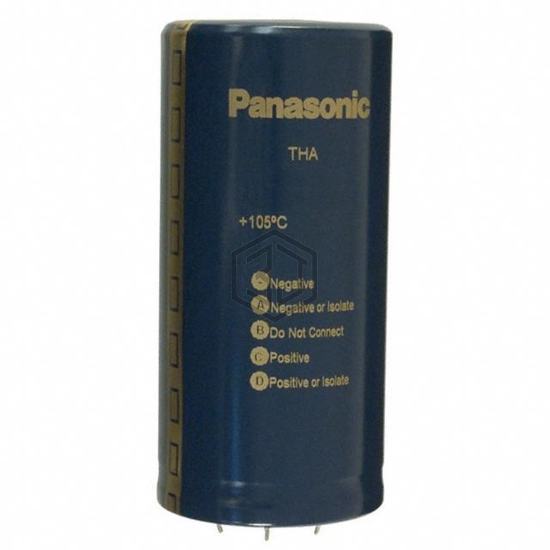

ECE-P2AA223HA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22000UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - Snap-In - 5 Lead.
In Stock: 6,348
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 15mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 9.32 A @ 120 Hz |
| Ripple Current @ High Frequency | 10.72 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.984" (25.00mm) |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 4.134" (105.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 5 Lead |
ECE-P2AA223HA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ALC80E223EH063 | KEMET | CAP ALUM 22000UF 20% 63V SNAP | 81% | View |
| ALC80C223EH063 | KEMET | CAP ALUM 22000UF 20% 63V SNAP | 81% | View |
| 381LL223M035A052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 22000UF 20% 35V SNAP | 58% | View |
| MAL216246223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 25V SNAP | 57% | View |
| SLP223M035H9P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 22000UF 20% 35V SNAP | 56% | View |
| MAL205825223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 16V SNAP | 55% | View |
Submit your RFQ for ECE-P2AA223HA and get a quote within 24 hours.
