Panasonic Electronic Components

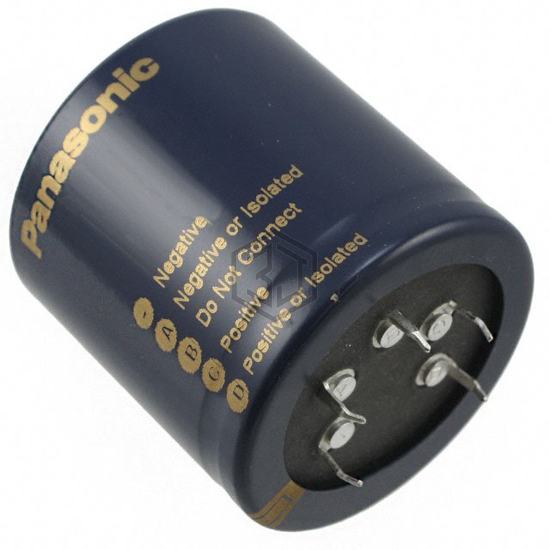

CAP ALUM 68000UF 20% 50V SNAP
ECE-P1HP683HA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 68000UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - Snap-In - 5 Lead.
In Stock: 8,345
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 68000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 11mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 13.17 A @ 120 Hz |
| Ripple Current @ High Frequency | 15.15 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.984" (25.00mm) |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 3.622" (92.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 5 Lead |
ECE-P1HP683HA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ALC70D683EL040 | KEMET | CAP ALUM 68000UF 20% 40V SNAP | 92% | View |
| ALC70C683EL040 | KEMET | CAP ALUM 68000UF 20% 40V SNAP | 92% | View |
| ALC70F683EL040 | KEMET | CAP ALUM 68000UF 20% 40V SNAP | 92% | View |
| 383LX683M050B102V | Cornell Dubilier Electronics (CDE) | CAP ALUM 68000UF 20% 50V SNAP | 89% | View |
| MAL205155683E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68000UF 20% 16V RADIAL | 60% | View |
| ESMH160VSN683MA50U | United Chemi-Con | CAP ALUM 68000UF 20% 16V SNAP | 57% | View |
