Panasonic Electronic Components
CAP ALUM 68000UF 20% 50V SNAP

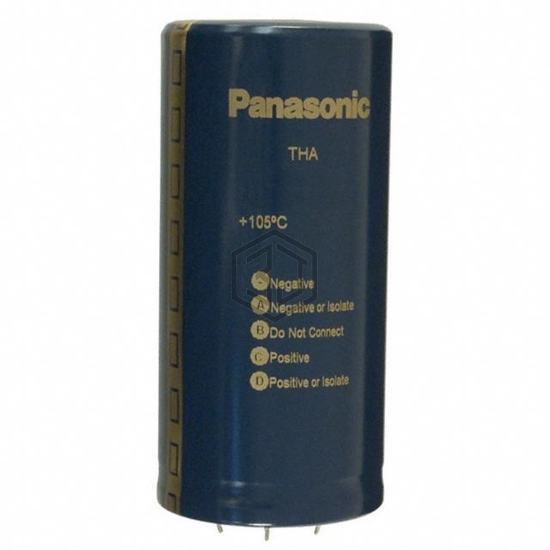

ECE-P1HA683HA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 68000UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - Snap-In - 5 Lead.
In Stock: 1,577
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 68000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 11mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 10.42 A @ 120 Hz |
| Ripple Current @ High Frequency | 11.98 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.984" (25.00mm) |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 4.134" (105.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 5 Lead |
ECE-P1HA683HA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 383LX683M050B102VS | Cornell Dubilier Electronics (CDE) | CAP ALUM 68000UF 20% 50V SNAP | 100% | View |
| MAL216256683E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68000UF 20% 25V SNAP | 66% | View |
| MALIEYH07DF568D42K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68000UF 20% 16V SNAP | 58% | View |
| 381LX683M016A062 | Cornell Dubilier Electronics (CDE) | CAP ALUM 68000UF 20% 16V SNAP | 57% | View |
| 16MXC68000MEFCSN35X50 | Rubycon | CAP ALUM 68000UF 20% 16V SNAP | 56% | View |
| EKMH160VNN683MA63U | United Chemi-Con | CAP ALUM 68000UF 20% 16V SNAP | 54% | View |
Submit your RFQ for ECE-P1HA683HA and get a quote within 24 hours.
