Panasonic Electronic Components

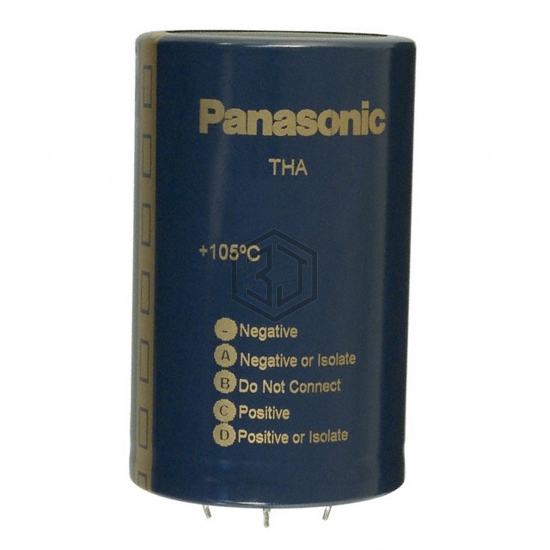

CAP ALUM 47000UF 20% 50V SNAP
ECE-P1HA473HA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 47000UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - Snap-In - 5 Lead.
In Stock: 1,467
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 47000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 14mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 9.19 A @ 120 Hz |
| Ripple Current @ High Frequency | 10.57 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.984" (25.00mm) |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 3.150" (80.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 5 Lead |
ECE-P1HA473HA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 383LX473M050B082VS | Cornell Dubilier Electronics (CDE) | CAP ALUM 47000UF 20% 50V SNAP | 100% | View |
| ALC80D473EL040 | KEMET | CAP ALUM 47000UF 20% 40V SNAP | 77% | View |
| ALC80D473DF025 | KEMET | CAP ALUM 47000UF 20% 25V SNAP | 76% | View |
| MAL216256473E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47000UF 20% 25V SNAP | 71% | View |
| MAL216254473E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47000UF 20% 10V SNAP | 59% | View |
| MAL215885473E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47000UF 20% 16V SNAP | 56% | View |
Submit your RFQ for ECE-P1HA473HA and get a quote within 24 hours.
