Panasonic Electronic Components
CAP ALUM 39000UF 20% 50V SNAP

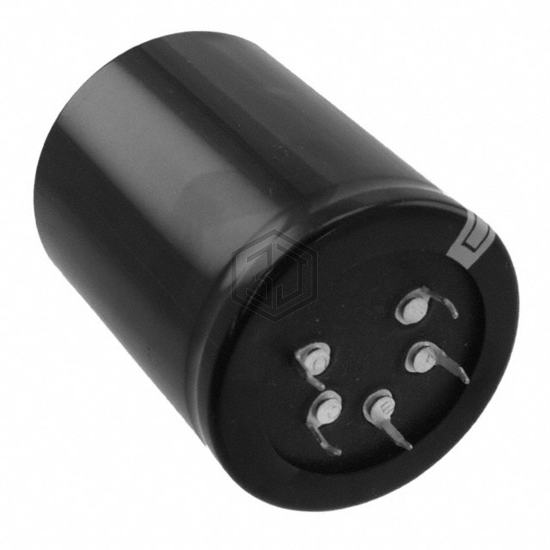

ECE-P1HA393HA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 39000UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - Snap-In - 5 Lead.
In Stock: 1,566
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 39000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 16mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 9.66 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.984" (25.00mm) |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 2.480" (63.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 5 Lead |
ECE-P1HA393HA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 383LX393M050N082 | Cornell Dubilier Electronics (CDE) | CAP ALUM 39000UF 20% 50V SNAP | 85% | View |
| 25MXG39000MEFCSN35X45 | Rubycon | CAP ALUM 39000UF 20% 25V SNAP | 61% | View |
| SLP393M016H7P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 39000UF 20% 16V SNAP | 57% | View |
| EKMH100VSN393MR45U | United Chemi-Con | CAP ALUM 39000UF 20% 10V SNAP | 56% | View |
| 16MXC39000MEFCSN25X50 | Rubycon | CAP ALUM 39000UF 20% 16V SNAP | 52% | View |
| LGU1C393MELC | Nichicon | CAP ALUM 39000UF 20% 16V SNAP | 52% | View |
Submit your RFQ for ECE-P1HA393HA and get a quote within 24 hours.
