Panasonic Electronic Components

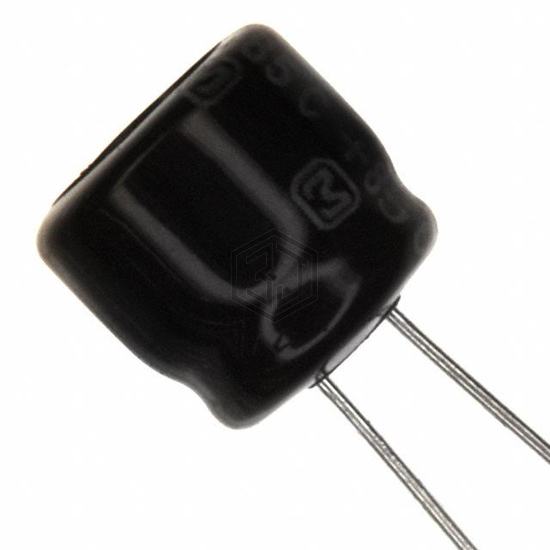

CAP ALUM 47UF 20% 35V RADIAL
ECE-A1VKA470Q is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 47UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 6,757
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 85 mA @ 120 Hz |
| Ripple Current @ High Frequency | 144.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UKT1V470MDD | Nichicon | CAP ALUM 47UF 20% 35V RADIAL | 92% | View |
| 50MS747MEFC8X7 | Rubycon | CAP ALUM 47UF 20% 50V RADIAL | 86% | View |
| 25YXF47MEFCTA5X11 | Rubycon | CAP ALUM 47UF 20% 25V RADIAL | 84% | View |
| 25ML47MEFCTZ6.3X5 | Rubycon | CAP ALUM 47UF 20% 25V RADIAL | 74% | View |
| UPV1C470MFD1TA | Nichicon | CAP ALUM 47UF 20% 16V RADIAL | 69% | View |
| 16MS547MTZ6.3X5 | Rubycon | CAP ALUM 47UF 20% 16V RADIAL | 63% | View |
Submit your RFQ for ECE-A1VKA470Q and get a quote within 24 hours.
