Panasonic Electronic Components

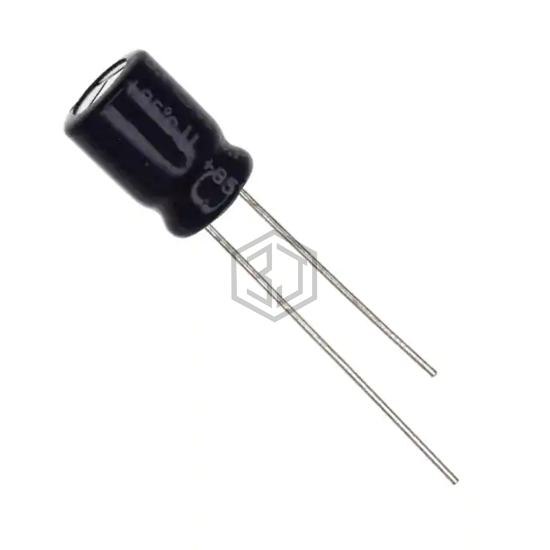

CAP ALUM 22UF 20% 50V RADIAL
ECE-A1HN220UB is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 3,259
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 90 mA @ 120 Hz |
| Ripple Current @ High Frequency | 153 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALREKB05AA222J00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 63V RADIAL | 88% | View |
| MAL203690389E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 35V RADIAL | 84% | View |
| UBT1K220MPD | Nichicon | CAP ALUM 22UF 20% 80V RADIAL | 81% | View |
| TBE1V220MAD | Nichicon | CAP ALUM 22UF 20% 35V AXIAL | 77% | View |
| ED1V220MPZ0511EU | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 73% | View |
| ECA-1EM220I | Panasonic Electronic Components | CAP ALUM 22UF 20% 25V RADIAL | 71% | View |
