Panasonic Electronic Components

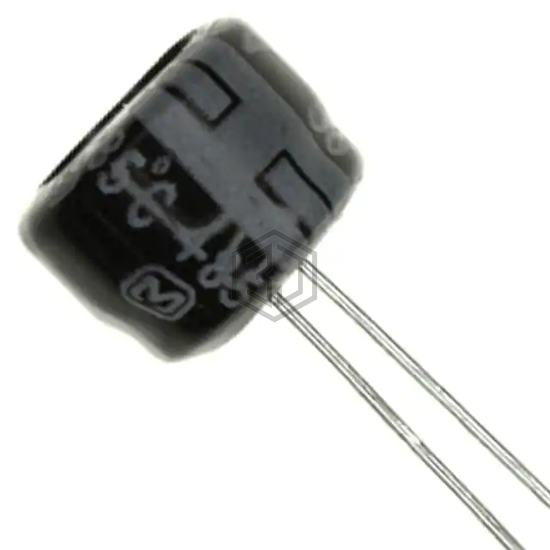

CAP ALUM 22UF 20% 50V RADIAL
ECE-A1HKS220I is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 2,961
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 60 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-HD1H220B | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V RADIAL | 97% | View |
| MAL211651229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 50V RADIAL | 95% | View |
| UPJ1H220MED1TD | Nichicon | CAP ALUM 22UF 20% 50V RADIAL | 83% | View |
| MAL209730229E6 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 35V RADIAL | 77% | View |
| UVR1C220MDA | Nichicon | CAP ALUM 22UF 20% 16V RADIAL | 64% | View |
| 400TXW22MEFR10X30 | Rubycon | CAP ALUM 22UF 20% 400V RADIAL TH | 56% | View |
