Panasonic Electronic Components

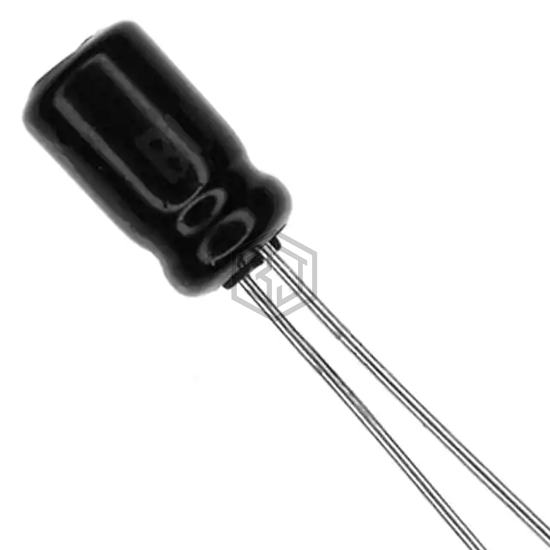

CAP ALUM 0.22UF 20% 50V RADIAL
ECE-A1HKAR22I is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 0.22UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 4,008
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.4 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
ECE-A1HKAR22I is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NEV.22M50-10 | NTE Electronics, Inc | CAP ALUM 0.22UF 20% 50V RADIAL | 100% | View |
| UST1HR22MDD1TE | Nichicon | CAP ALUM 0.22UF 20% 50V RADIAL | 100% | View |
| USP1HR22MDD1TP | Nichicon | CAP ALUM 0.22UF 20% 50V RADIAL | 100% | View |
| ECE-A1HKSR22I | Panasonic Electronic Components | CAP ALUM 0.22UF 20% 50V RADIAL | 100% | View |
| ECE-A1HKGR22 | Panasonic Electronic Components | CAP ALUM 0.22UF 20% 50V RADIAL | 99% | View |
| NEV.22M63AA | NTE Electronics, Inc | CAP ALUM 0.22UF 20% 63V RADIAL | 85% | View |
Submit your RFQ for ECE-A1HKAR22I and get a quote within 24 hours.
