Panasonic Electronic Components

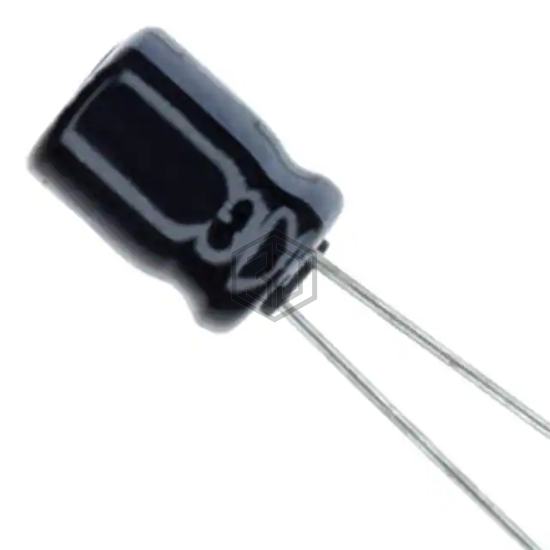

CAP ALUM 22UF 20% 25V RADIAL
ECE-A1EKA220B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 2,319
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 55 mA @ 120 Hz |
| Ripple Current @ High Frequency | 93.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UMA1E220MDD1TA | Nichicon | CAP ALUM 22UF 20% 25V RADIAL | 100% | View |
| USV1E220MFD1TE | Nichicon | CAP ALUM 22UF 20% 25V RADIAL | 93% | View |
| MAL213470229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 35V RADIAL | 76% | View |
| URS1A220MDD | Nichicon | CAP ALUM 22UF 20% 10V RADIAL | 75% | View |
| MAL211828229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 63V AXIAL | 60% | View |
| MAL213238229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 63V AXIAL | 52% | View |
Submit your RFQ for ECE-A1EKA220B and get a quote within 24 hours.
