Panasonic Electronic Components

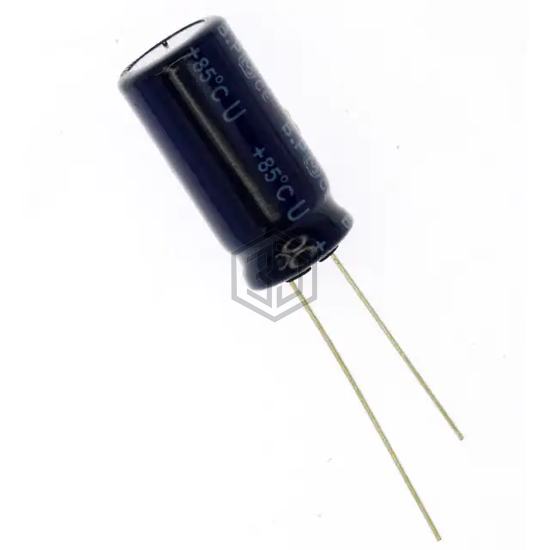

CAP ALUM 1000UF 20% 16V RADIAL
ECE-A1CN102UB is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1000UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 4,744
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 560 mA @ 120 Hz |
| Ripple Current @ High Frequency | 952 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL216055102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 16V RADIAL | 100% | View |
| 672D108H012DS5R | Vishay Sprague | CAP ALUM 1000UF 15V RADIAL | 96% | View |
| URY1C102MHD1TO | Nichicon | CAP ALUM 1000UF 20% 16V RADIAL | 87% | View |
| URZ1A102MPD | Nichicon | CAP ALUM 1000UF 20% 10V RADIAL | 74% | View |
| 515D108M025DG6CE3 | Vishay Sprague | CAP ALUM 1000UF 20% 25V RADIAL | 70% | View |
| UPA1A102MPD3 | Nichicon | CAP ALUM 1000UF 20% 10V RADIAL | 67% | View |
Submit your RFQ for ECE-A1CN102UB and get a quote within 24 hours.
