Panasonic Electronic Components

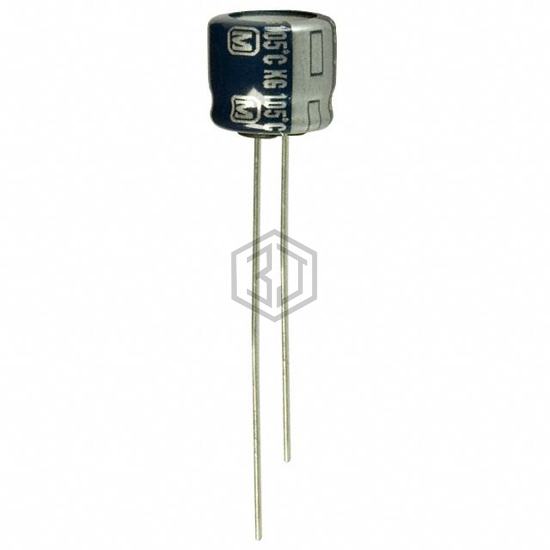

CAP ALUM 100UF 20% 16V RADIAL
ECE-A1CKG101 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 100UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 5,681
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 190 mA @ 100 kHz |
| Impedance | 1.2 Ohms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
ECE-A1CKG101 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL212385101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 16V AXIAL | 91% | View |
| MAL212366101 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 25V AXIAL | 74% | View |
| MAL212316101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 25V AXIAL | 74% | View |
| MAL212326101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 25V AXIAL | 74% | View |
| UMF0J101MDD1TE | Nichicon | CAP ALUM 100UF 20% 6.3V RADIAL | 62% | View |
| URZ1H101MPD1TD | Nichicon | CAP ALUM 100UF 20% 50V RADIAL | 62% | View |
