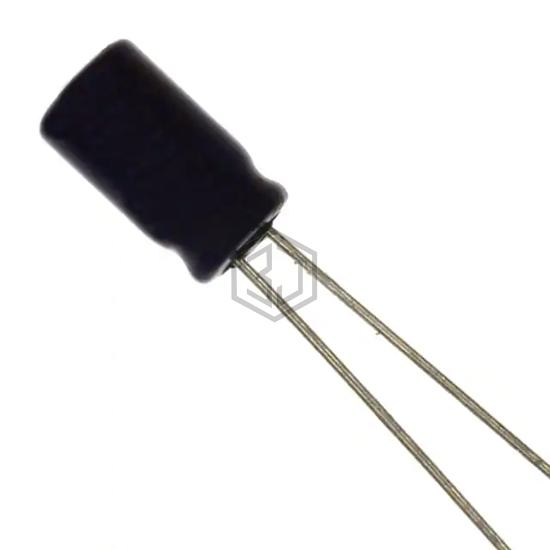

Panasonic Electronic Components
CAP ALUM 47UF 20% 10V RADIAL
ECE-A1AN470S is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 47UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 6,051
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 90 mA @ 120 Hz |
| Ripple Current @ High Frequency | 170 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.441" (11.20mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
ECE-A1AN470S is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UMV1A470MFD | Nichicon | CAP ALUM 47UF 20% 10V RADIAL | 78% | View |
| USV1A470MFD1TP | Nichicon | CAP ALUM 47UF 20% 10V RADIAL | 74% | View |
| PF1V470MPN0511U | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 73% | View |
| UPW1C470MDD1TD | Nichicon | CAP ALUM 47UF 20% 16V RADIAL | 72% | View |
| 25YXM47MEFRT15X11 | Rubycon | CAP ALUM 47UF 20% 25V RADIAL | 72% | View |
| ER1V470MP26307P9U | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 70% | View |
Submit your RFQ for ECE-A1AN470S and get a quote within 24 hours.
