Panasonic Electronic Components

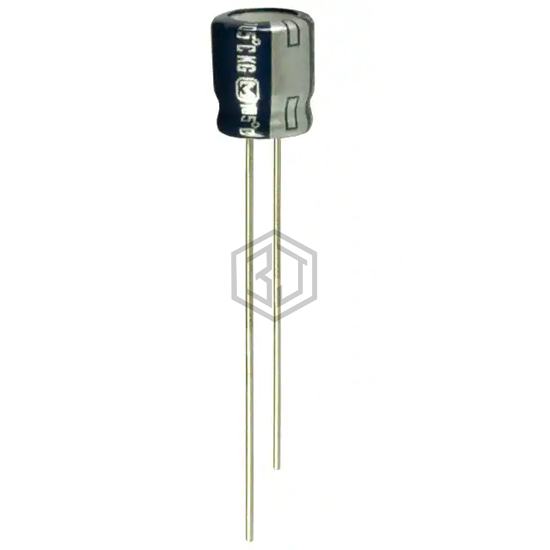

CAP ALUM 47UF 20% 10V RADIAL
ECE-A1AKG470 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 47UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 9,279
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 121 mA @ 100 kHz |
| Impedance | 2 Ohms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
ECE-A1AKG470 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| KMG6.3VB47RM5X11LL | United Chemi-Con | CAP ALUM 47UF 20% 6.3V RADIAL | 73% | View |
| MAL212313479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 6.3V AXIAL | 66% | View |
| 50PX47MEFCTA6.3X11 | Rubycon | CAP ALUM 47UF 20% 50V RADIAL | 60% | View |
| MAL211938479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 63V AXIAL | 57% | View |
| ELXY630ELL470MJC5S | United Chemi-Con | CAP ALUM 47UF 20% 63V RADIAL | 56% | View |
| EEU-FC1E470H | Panasonic Electronic Components | CAP ALUM 47UF 20% 25V RADIAL | 52% | View |
