Panasonic Electronic Components
CAP ALUM 220UF 20% 6.3V RADIAL

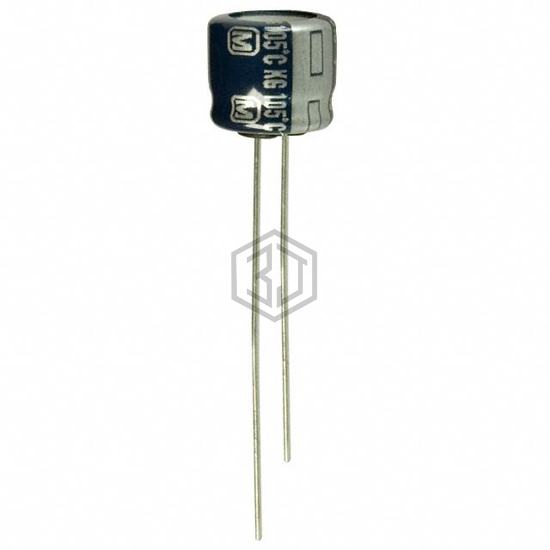

ECE-A0JKG221 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 220UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 1,670
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 190 mA @ 100 kHz |
| Impedance | 1.2 Ohms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
ECE-A0JKG221 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPS0J221MED | Nichicon | CAP ALUM 220UF 20% 6.3V RADIAL | 79% | View |
| UVZ1A221MED | Nichicon | CAP ALUM 220UF 20% 10V RADIAL | 70% | View |
| UPS1A221MED | Nichicon | CAP ALUM 220UF 20% 10V RADIAL | 63% | View |
| UPS1A221MED1TD | Nichicon | CAP ALUM 220UF 20% 10V RADIAL | 63% | View |
| 860160273013 | Würth Elektronik | CAP ALUM 220UF 20% 10V RADIAL | 56% | View |
| 35PX220MEFCT78X11.5 | Rubycon | CAP ALUM 220UF 20% 35V RADIAL | 51% | View |
Submit your RFQ for ECE-A0JKG221 and get a quote within 24 hours.
