Panasonic Electronic Components

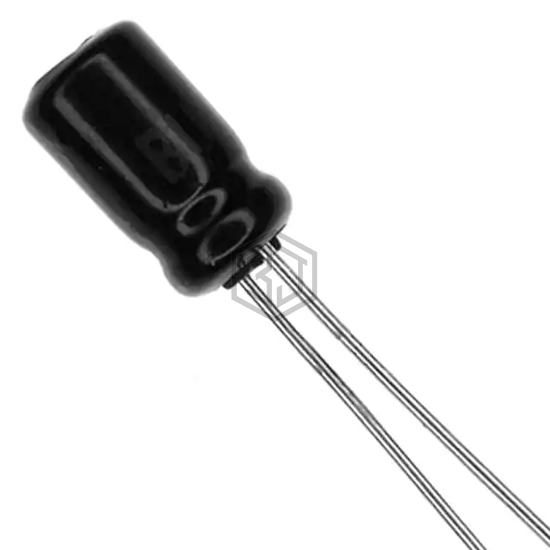

CAP ALUM 47UF 20% 6.3V RADIAL
ECE-A0JKA470I is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 47UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 4,128
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 46 mA @ 120 Hz |
| Ripple Current @ High Frequency | 78.2 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 6.3ML47MEFCT54X7 | Rubycon | CAP ALUM 47UF 20% 6.3V RADIAL | 97% | View |
| UMW1A470MDD1TP | Nichicon | CAP ALUM 47UF 20% 10V RADIAL | 83% | View |
| UMW1A470MDD1TE | Nichicon | CAP ALUM 47UF 20% 10V RADIAL | 83% | View |
| UKZ1H470MPM1TD | Nichicon | CAP ALUM 47UF 20% 50V RADIAL | 56% | View |
| 672D476H025CC5C | Vishay Sprague | CAP ALUM 47UF 25V RADIAL | 56% | View |
| 35ML47MEFCTZ8X5 | Rubycon | CAP ALUM 47UF 20% 35V RADIAL | 55% | View |
Submit your RFQ for ECE-A0JKA470I and get a quote within 24 hours.
