Panasonic Electronic Components

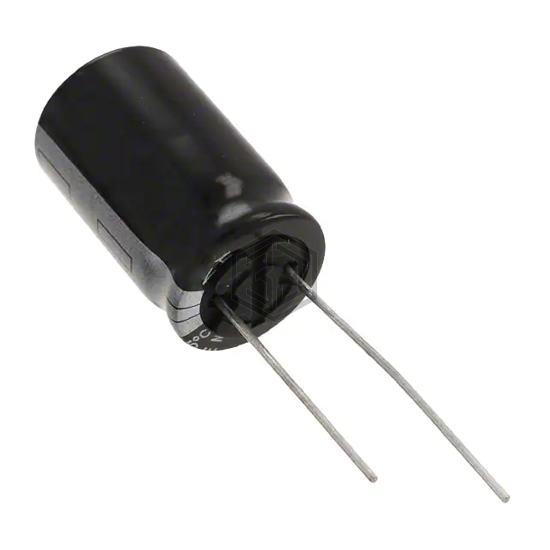

CAP ALUM 22UF 20% 450V RADIAL
ECA-2WHG220 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 2,215
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 115 mA @ 120 Hz |
| Ripple Current @ High Frequency | 172.5 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVZ2F220MHD1TO | Nichicon | CAP ALUM 22UF 20% 315V RADIAL | 88% | View |
| 200PX22MT810X16 | Rubycon | CAP ALUM 22UF 20% 200V RADIAL | 75% | View |
| UVZ2C220MPD1TD | Nichicon | CAP ALUM 22UF 20% 160V RADIAL | 74% | View |
| EKMG251ELL220MK20S | United Chemi-Con | CAP ALUM 22UF 20% 250V RADIAL | 72% | View |
| 860160472003 | Würth Elektronik | CAP ALUM 22UF 20% 25V RADIAL | 64% | View |
| ED1H220MP20511EP9U | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 60% | View |
