Panasonic Electronic Components

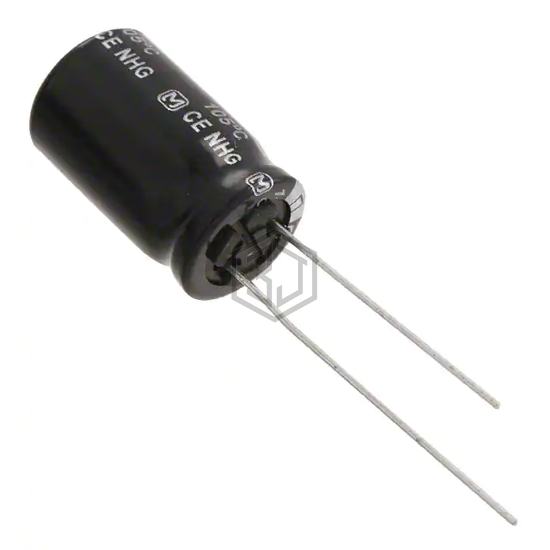

CAP ALUM 22UF 20% 250V RADIAL
ECA-2EHG220B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 9,823
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 155 mA @ 120 Hz |
| Ripple Current @ High Frequency | 232.5 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESH226M250AL3AA | KEMET | CAP ALUM RAD 105C | 98% | View |
| REA1020220M200K | KYOCERA AVX | CAP ALUM 22UF 20% 200V RADIAL TH | 87% | View |
| B43858G2226M000 | EPCOS - TDK Electronics | CAP ALUM 22UF 20% 200V TH | 83% | View |
| REA0812220M100K | KYOCERA AVX | CAP ALUM 22UF 20% 100V RADIAL TH | 65% | View |
| 226RZM050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 50V RADIAL | 56% | View |
| MAL211936229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 25V AXIAL | 52% | View |
