Panasonic Electronic Components

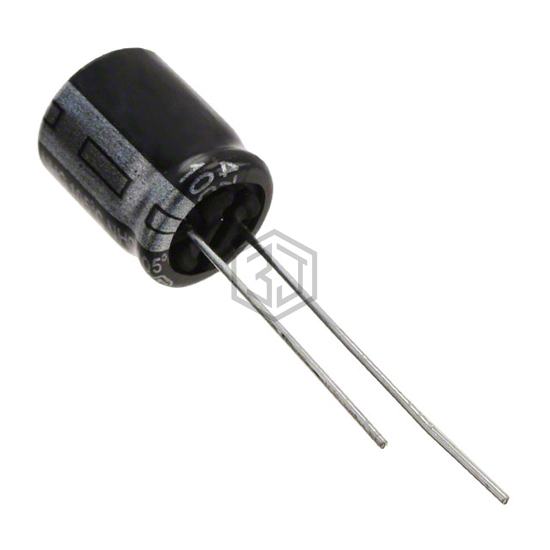

CAP ALUM 22UF 20% 200V RADIAL
ECA-2DHG220B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 2,919
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 140 mA @ 120 Hz |
| Ripple Current @ High Frequency | 210 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPS2C220MPD1TD | Nichicon | CAP ALUM 22UF 20% 160V RADIAL | 91% | View |
| 600D226F250DL4E3 | Vishay Sprague | CAP ALUM 22UF 250V AXIAL | 85% | View |
| 450WXA22MEFCGC16X20 | Rubycon | CAP ALUM 22UF 20% 450V RADIAL | 70% | View |
| 50YXJ22MT15X11 | Rubycon | CAP ALUM 22UF 20% 50V RADIAL | 67% | View |
| PF1H220MP20511RU | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 61% | View |
| 510D226M035BB3D | Vishay Sprague | CAP ALUM 22UF 20% 35V RADIAL | 56% | View |
Submit your RFQ for ECA-2DHG220B and get a quote within 24 hours.
