Panasonic Electronic Components

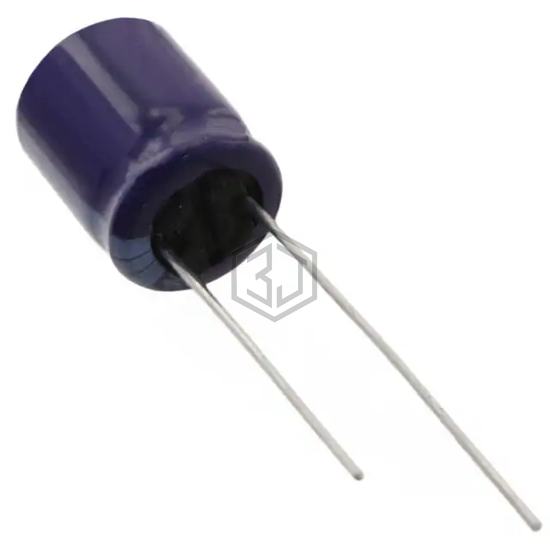

CAP ALUM 22UF 20% 160V RADIAL
ECA-2CM220 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 7,283
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 175 mA @ 120 Hz |
| Ripple Current @ High Frequency | 297.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| URU2D220MHD | Nichicon | CAP ALUM 22UF 20% 200V RADIAL | 91% | View |
| B43858A1226M000 | EPCOS - TDK Electronics | CAP ALUM 22UF 20% 160V RADIAL | 89% | View |
| RFS-100V220MH5#5 | Elna America | CAP ALUM 22UF 20% 100V RADIAL | 77% | View |
| 500D226M250EH2 | Vishay Sprague | CAP ALUM 22UF 20% 250V AXIAL | 71% | View |
| 450TXW22MEFR10X35 | Rubycon | CAP ALUM 22UF 20% 450V RADIAL TH | 56% | View |
| 350BXC22MEFC12.5X20 | Rubycon | CAP ALUM 22UF 20% 350V RADIAL | 51% | View |
Submit your RFQ for ECA-2CM220 and get a quote within 24 hours.
