Panasonic Electronic Components

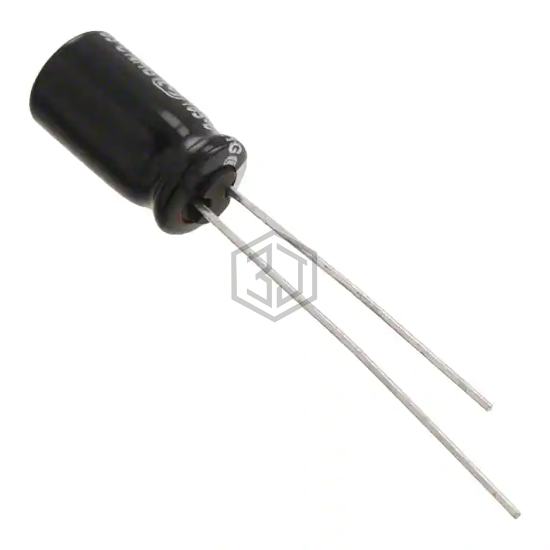

CAP ALUM 2.2UF 20% 160V RADIAL
ECA-2CHG2R2 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 2.2UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 7,378
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 25 mA @ 120 Hz |
| Ripple Current @ High Frequency | 37.5 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.480" (12.20mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVY2D2R2MED1TD | Nichicon | CAP ALUM 2.2UF 20% 200V RADIAL | 92% | View |
| ESE225M250AE3AA | KEMET | CAP ALUM RAD 105C | 82% | View |
| ECA-2EHG2R2B | Panasonic Electronic Components | CAP ALUM 2.2UF 20% 250V RADIAL | 79% | View |
| ESE225M100AC3EA | KEMET | CAP ALUM RAD 105C | 79% | View |
| VHT2.2M63 | NTE Electronics, Inc | CAP ALUM 2.2UF 20% 63V RADIAL | 56% | View |
| MAL214252285E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2.2UF 20% 350V RADIAL | 55% | View |
Submit your RFQ for ECA-2CHG2R2 and get a quote within 24 hours.
