Panasonic Electronic Components

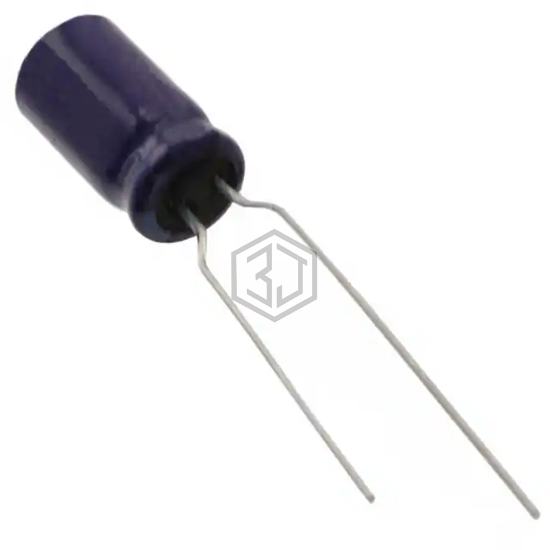

CAP ALUM 22UF 20% 100V RADIAL
ECA-2AM220B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 2,810
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 195.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.480" (12.20mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41856C9226M000 | EPCOS - TDK Electronics | CAP ALUM 100V POLAR | 81% | View |
| UKW1H220MDD | Nichicon | CAP ALUM 22UF 20% 50V RADIAL | 71% | View |
| UPW1E220MDD | Nichicon | CAP ALUM 22UF 20% 25V RADIAL | 69% | View |
| NPA22M25 | NTE Electronics, Inc | CAP ALUM 22UF 20% 25V AXIAL | 56% | View |
| 16TWL22KEFC8X11.5 | Rubycon | CAP ALUM 22UF 10% 16V RADIAL | 56% | View |
| EEA-GA1V220 | Panasonic Electronic Components | CAP ALUM 22UF 20% 35V RADIAL | 52% | View |
