Panasonic Electronic Components

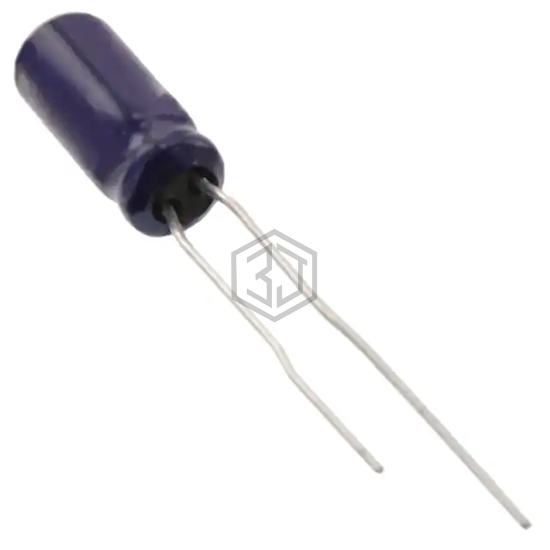

CAP ALUM 22UF 20% 35V RADIAL
ECA-1VM220B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 2,886
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 161.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UKL1V220MED1TD | Nichicon | CAP ALUM 22UF 20% 35V RADIAL | 90% | View |
| USR1E220MDD1TP | Nichicon | CAP ALUM 22UF 20% 25V RADIAL | 78% | View |
| 50RX3022MT15X11 | Rubycon | CAP ALUM 22UF 20% 50V RADIAL | 77% | View |
| 50ZLJ22M5X11 | Rubycon | CAP ALUM 22UF 20% 50V RADIAL TH | 77% | View |
| MAL215059229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 100V RADIAL | 56% | View |
| ESMQ251ELL220MJ20S | United Chemi-Con | CAP ALUM 22UF 20% 250V RADIAL | 51% | View |
