Panasonic Electronic Components
CAP ALUM 22UF 20% 63V RADIAL

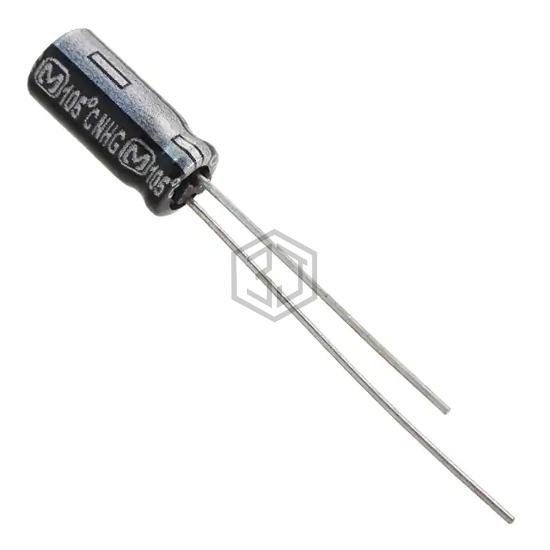

ECA-1JHG220I is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 8,117
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 71 mA @ 120 Hz |
| Ripple Current @ High Frequency | 142 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBW1J220MPD | Nichicon | CAP ALUM 22UF 20% 63V RADIAL | 96% | View |
| UPJ1K220MED | Nichicon | CAP ALUM 22UF 20% 80V RADIAL | 92% | View |
| UVY1H220MDD | Nichicon | CAP ALUM 22UF 20% 50V RADIAL | 91% | View |
| URZ1H220MDD1TD | Nichicon | CAP ALUM 22UF 20% 50V RADIAL | 89% | View |
| UPM1J220MED1TA | Nichicon | CAP ALUM 22UF 20% 63V RADIAL | 80% | View |
| 860160472003 | Würth Elektronik | CAP ALUM 22UF 20% 25V RADIAL | 77% | View |
