Panasonic Electronic Components
CAP ALUM 22UF 20% 50V RADIAL

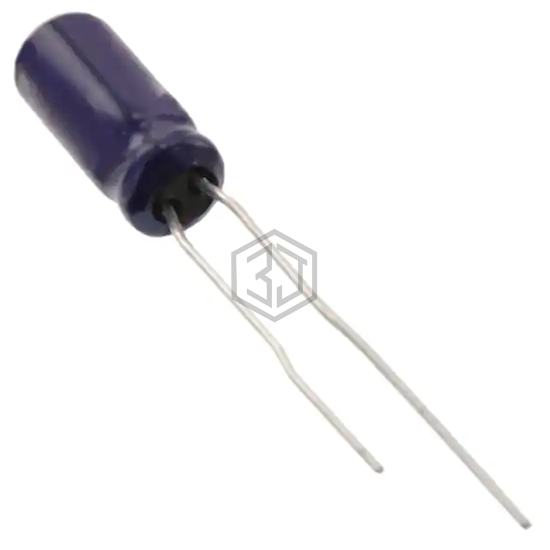

ECA-1HM220B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 6,624
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 100 mA @ 120 Hz |
| Ripple Current @ High Frequency | 170 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 672D226F050CD5D | Vishay Sprague | CAP ALUM 22UF 50V RADIAL | 100% | View |
| B41896W8226M | EPCOS - TDK Electronics | CAP ALUM 22UF 20% 63V RADIAL | 86% | View |
| MALREKE05BA222J00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 63V RADIAL | 85% | View |
| UST1H220MDD1TE | Nichicon | CAP ALUM 22UF 20% 50V RADIAL | 76% | View |
| MAL203669229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 100V RADIAL | 68% | View |
| UMW1V220MDD1TE | Nichicon | CAP ALUM 22UF 20% 35V RADIAL | 60% | View |
