Panasonic Electronic Components

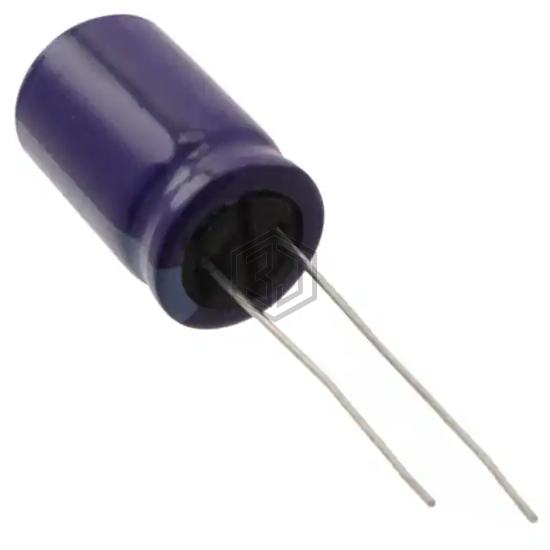

CAP ALUM 2200UF 20% 25V RADIAL
ECA-1EM222B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 2200UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 7,374
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.04 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EGXE160ELL222ML25S | United Chemi-Con | CAP ALUM 2200UF 20% 16V RADIAL | 81% | View |
| MAL202125222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 16V AXIAL | 77% | View |
| 25ZLQ2200MEFC12.5X25 | Rubycon | CAP ALUM 2200UF 20% 25V RADIAL | 75% | View |
| 228CKS010M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 2200UF 20% 10V RADIAL | 74% | View |
| EKMQ500ELL222MLN3S | United Chemi-Con | CAP ALUM 2200UF 20% 50V RADIAL | 68% | View |
| 515D228M010DG6AE3 | Vishay Sprague | CAP ALUM 2200UF 20% 10V RADIAL | 65% | View |
Submit your RFQ for ECA-1EM222B and get a quote within 24 hours.
