Panasonic Electronic Components
CAP ALUM 100UF 20% 25V RADIAL

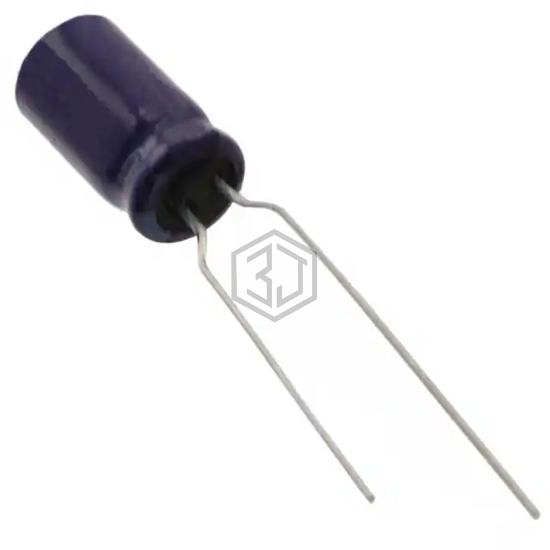

ECA-1EM101B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 100UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 6,403
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 180 mA @ 120 Hz |
| Ripple Current @ High Frequency | 306 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.480" (12.20mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPW1C101MEH | Nichicon | CAP ALUM 100UF 20% 16V RADIAL | 84% | View |
| 25YXA100MTA6.3X11 | Rubycon | CAP ALUM 100UF 20% 25V RADIAL | 83% | View |
| 107TLS035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 100UF 20% 35V AXIAL | 78% | View |
| 16YK100MEFCT15X11 | Rubycon | CAP ALUM 100UF 20% 16V RADIAL | 77% | View |
| ESMG630ELL101MJC5S | United Chemi-Con | CAP ALUM 100UF 20% 63V RADIAL | 57% | View |
| 10YXS100MEFC5X11 | Rubycon | CAP ALUM 100UF 20% 10V RADIAL | 57% | View |
