Panasonic Electronic Components

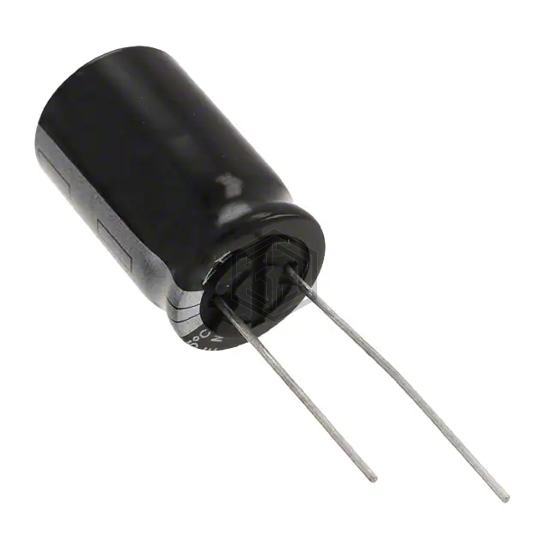

CAP ALUM 6800UF 20% 16V RADIAL
ECA-1CHG682 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 6800UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 2,316
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.78 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.047 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UKA1C682MHD | Nichicon | CAP ALUM 6800UF 20% 16V RADIAL | 100% | View |
| MAL225065682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 16V RADIAL | 83% | View |
| ECA-1AHG682 | Panasonic Electronic Components | CAP ALUM 6800UF 20% 10V RADIAL | 80% | View |
| EEU-FK1A682B | Panasonic Electronic Components | CAP ALUM 6800UF 20% 10V RAD TH | 73% | View |
| EEU-FC0J682S | Panasonic Electronic Components | CAP ALUM 6800UF 20% 6.3V RADIAL | 70% | View |
| 381LL682M100N062 | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 100V SNAP | 56% | View |
Submit your RFQ for ECA-1CHG682 and get a quote within 24 hours.
