Panasonic Electronic Components

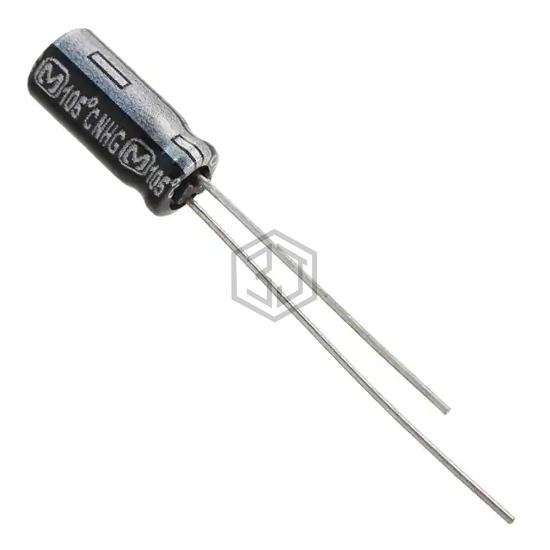

CAP ALUM 47UF 20% 16V RADIAL
ECA-1CHG470B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 47UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 8,574
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 77 mA @ 120 Hz |
| Ripple Current @ High Frequency | 115.5 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25PX47MEFCT15X11 | Rubycon | CAP ALUM 47UF 20% 25V RADIAL | 82% | View |
| EJ1C470MP20511EU | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 81% | View |
| EEA-GA1A470B | Panasonic Electronic Components | CAP ALUM 47UF 20% 10V RADIAL | 78% | View |
| ECA-1VHG470 | Panasonic Electronic Components | CAP ALUM 47UF 20% 35V RADIAL | 71% | View |
| EKMG350EC3470ME11D | United Chemi-Con | CAP ALUM 47UF 20% 35V RADIAL | 67% | View |
| 860080472002 | Würth Elektronik | CAP ALUM 47UF 20% 25V RADIAL | 58% | View |
Submit your RFQ for ECA-1CHG470B and get a quote within 24 hours.
