Panasonic Electronic Components

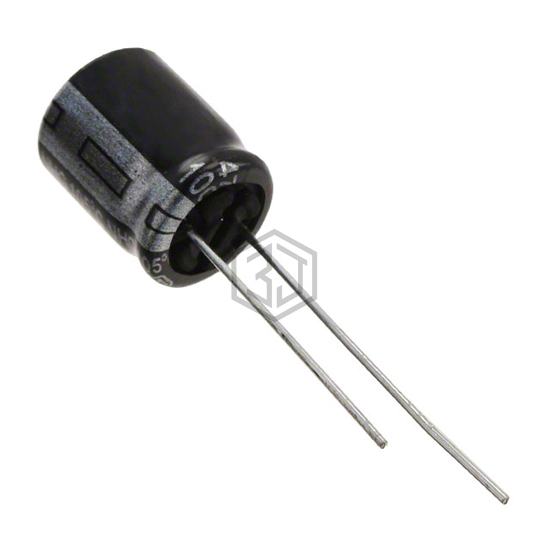

CAP ALUM 1000UF 20% 16V RADIAL
ECA-1CHG102 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1000UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 2,627
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 560 mA @ 120 Hz |
| Ripple Current @ High Frequency | 644 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL226065102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 16V RADIAL | 95% | View |
| MAL211815102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 16V AXIAL | 90% | View |
| 678D108M016DM5O | Vishay Sprague | CAP ALUM 1000UF 20% 16V RADIAL | 84% | View |
| MAL213654102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 10V RADIAL | 73% | View |
| MAL213656102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 25V RADIAL | 61% | View |
| 50WXA1000MEFCGC16X20 | Rubycon | CAP ALUM 1000UF 20% 50V RADIAL | 56% | View |
