Panasonic Electronic Components
CAP FILM 4UF 10% 440VAC CHAS MT

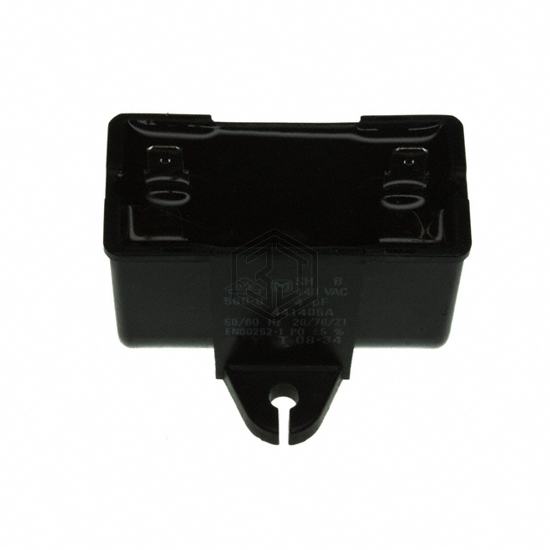

DS441405-BA is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 4UF 10% 440VAC CHAS MT. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 70°C, voltage rating - ac 440V, package / case Rectangular Box.
In Stock: 4,344
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 440V |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -25°C ~ 70°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 1.957" L x 0.945" W (49.70mm x 24.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Termination | Quick Connect - 0.187" (4.7mm) |
| Lead Spacing | - |
| Applications | Motor Run |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP386M540070JT6 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4UF 5% 700VDC SCREW | 99% | View |
| PMB1704400KAP | Nichicon | FILM CAP BOXED LUGS | 99% | View |
| PMB1704400KBN | Nichicon | FILM CAP BOXED LUGS | 99% | View |
| MKP386M540070JT3 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4UF 5% 700VDC SCREW | 99% | View |
| MKP386M540100YT6 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4UF 5% 1KVDC SCREW | 98% | View |
| PMB1854400KSL | Nichicon | FILM CAP BOXED LUGS | 98% | View |
