Panasonic Electronic Components
TRANS PREBIAS NPN/PNP SSMINI5

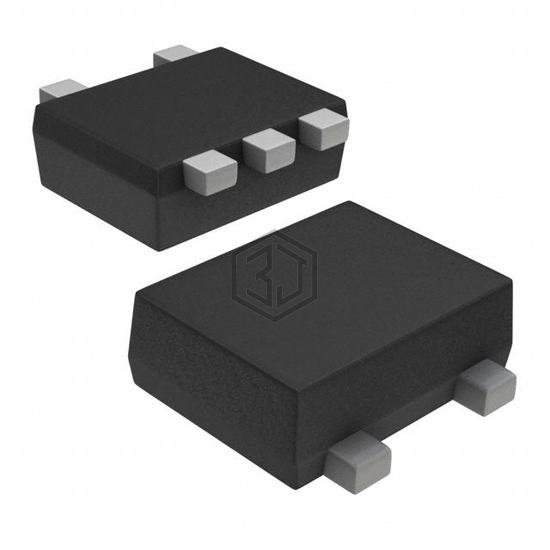

DMG963020R is a Transistors - Bipolar (BJT) - Arrays, Pre-Biased manufactured by Panasonic Electronic Components. TRANS PREBIAS NPN/PNP SSMINI5. Key specifications: mounting type Surface Mount, package / case SOT-665, current - collector (ic) (max) 100mA, power - max 125mW.
In Stock: 8,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Resistor - Base (R1) | 22kOhms |
| Resistor - Emitter Base (R2) | 22kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 5mA, 10V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | 500nA |
| Frequency - Transition | - |
| Power - Max | 125mW |
| Mounting Type | Surface Mount |
| Package / Case | SOT-665 |
| Supplier Device Package | SSMini5-F4-B |
Submit your RFQ for DMG963020R and get a quote within 24 hours.
