Panasonic Electronic Components
IC REG CTRLR BUCK/BOOST 24SSOP

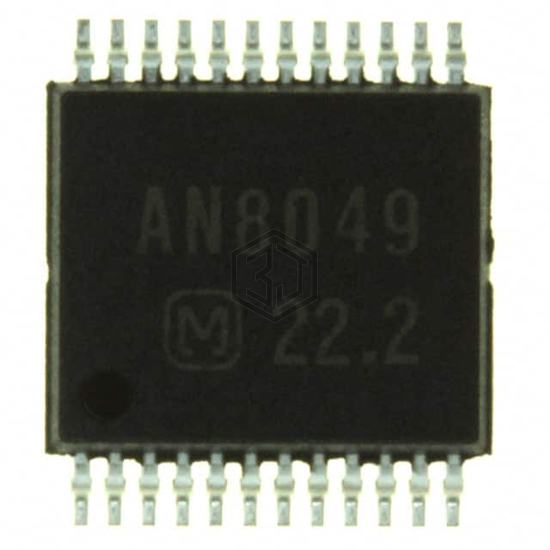

AN8049SH-E1 is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Panasonic Electronic Components. IC REG CTRLR BUCK/BOOST 24SSOP. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 85°C (TA), voltage - supply (vcc/vdd) 1.8V ~ 14V, package / case 24-LFSOP (0.220", 5.50mm Width).
In Stock: 7,203
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive or Negative |
| Topology | Buck, Boost |
| Number of Outputs | 3 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 14V |
| Frequency - Switching | 20kHz ~ 1MHz |
| Duty Cycle (Max) | 86% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Enable, Soft Start |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 24-LFSOP (0.220", 5.50mm Width) |
| Supplier Device Package | 24-SSOP |
AN8049SH-E1 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AN8049FHNEBV | Panasonic Electronic Components | IC REG CTRLR BUCK/BOOST 24QFN | 100% | View |
| AN8049FHN-EB | Panasonic Electronic Components | IC REG CTRLR BUCK/BOOST 24QFN | 100% | View |
| AN8018SA-E1 | Panasonic Electronic Components | IC REG CTRLR BUCK/BOOST 16SSOP | 95% | View |
| AN8018SA-E1V | Panasonic Electronic Components | IC REG CTRLR BUCK/BOOST 16SSOP | 95% | View |
Submit your RFQ for AN8049SH-E1 and get a quote within 24 hours.
