Panasonic Electronic Components
IC REG CTRLR BUCK/BOOST 10-SSOP

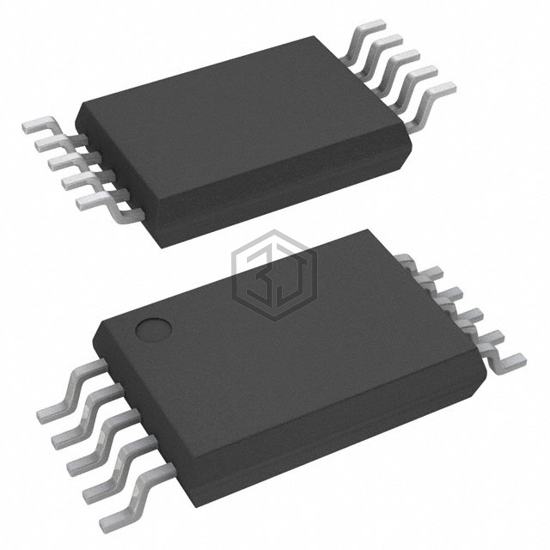

AN8015SH-E1 is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Panasonic Electronic Components. IC REG CTRLR BUCK/BOOST 10-SSOP. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 85°C (TA), voltage - supply (vcc/vdd) 3.6V ~ 34V, package / case 10-FSOP (0.169", 4.30mm Width).
In Stock: 9,985
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Down |
| Output Configuration | Positive or Negative |
| Topology | Buck, Boost |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 3.6V ~ 34V |
| Frequency - Switching | 2kHz ~ 500kHz |
| Duty Cycle (Max) | 90% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Frequency Control |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-FSOP (0.169", 4.30mm Width) |
| Supplier Device Package | 10-SSOP |
AN8015SH-E1 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AN8015SH-E1V | Panasonic Electronic Components | IC REG CTRLR BUCK/BOOST 10-SSOP | 100% | View |
Submit your RFQ for AN8015SH-E1 and get a quote within 24 hours.
