Panasonic Electronic Components
IC REG BUCK BST ADJ 50MA 10SSOP

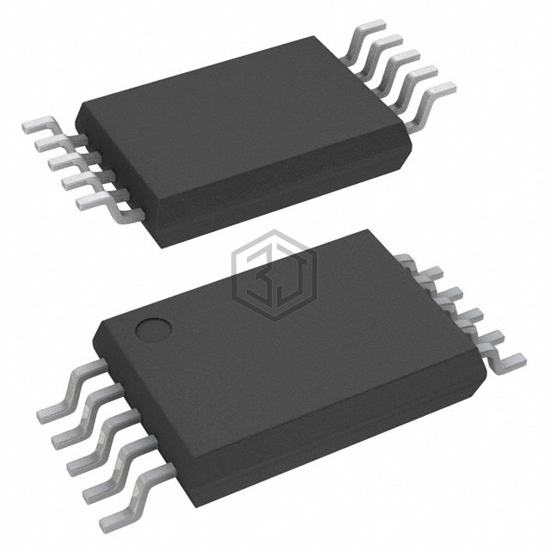

AN8013SH-E1V is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Panasonic Electronic Components. IC REG BUCK BST ADJ 50MA 10SSOP. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 85°C (TA), package / case 10-FSOP (0.169", 4.30mm Width), current - output 50mA.
In Stock: 7,188
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Step-Up, Step-Down |
| Output Configuration | Positive |
| Topology | Buck, Boost |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3.6V |
| Voltage - Input (Max) | 34V |
| Voltage - Output (Min/Fixed) | 3.6V |
| Voltage - Output (Max) | 34V |
| Current - Output | 50mA |
| Frequency - Switching | 20kHz ~ 500kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-FSOP (0.169", 4.30mm Width) |
| Supplier Device Package | 10-SSOP |
AN8013SH-E1V is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AN8013SH-E1 | Panasonic Electronic Components | IC REG BUCK BST ADJ 50MA 10SSOP | 100% | View |
Submit your RFQ for AN8013SH-E1V and get a quote within 24 hours.
