Panasonic Electronic Components

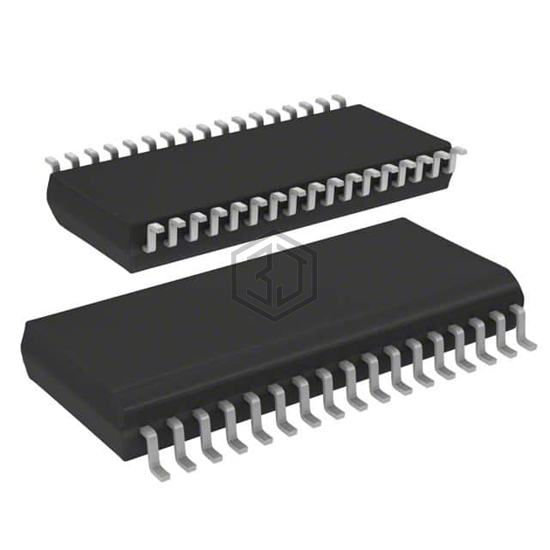

IC MTR DRV BIPOLAR 10-34V 34HSOP
AN44067A-VF is a PMIC - Motor Drivers, Controllers manufactured by Panasonic Electronic Components. IC MTR DRV BIPOLAR 10-34V 34HSOP. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 120°C (TJ), voltage - supply 10V ~ 34V, package / case 34-TSOP (0.240", 6.10mm Width) Exposed Pad.
In Stock: 4,036
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | Parallel |
| Technology | Power MOSFET |
| Step Resolution | 1, 1/2, 1/8, 1/16, 1/32 |
| Applications | General Purpose |
| Current - Output | 2.5A |
| Voltage - Supply | 10V ~ 34V |
| Voltage - Load | 10V ~ 34V |
| Operating Temperature | -20°C ~ 120°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 34-TSOP (0.240", 6.10mm Width) Exposed Pad |
| Supplier Device Package | 34-HSOP |
AN44067A-VF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DRV8825PWP | Texas Instruments | IC MTR DRVR BIPLR 8.2-45V 28SSOP | 93% | View |
| DRV8434ERGER | Texas Instruments | 48-V, 2.5-A BIPOLAR STEPPER OR D | 80% | View |
| DRV8424PWPR | Texas Instruments | 35V, 2.5A BIPOLAR STEPPER MOTOR | 80% | View |
| MP6500LGU-P | Monolithic Power Systems Inc. | 35V, 2.5A STEPPER MOTOR DRIVER W | 80% | View |
| A3977SLPTR-T | Allegro MicroSystems | IC MTR DRV BIPOLR 3-5.5V 28TSSOP | 75% | View |
| MP6500GF | Monolithic Power Systems Inc. | IC MTR DRV BIPLR 4.5-35V 28TSSOP | 66% | View |
Submit your RFQ for AN44067A-VF and get a quote within 24 hours.
