Panasonic Electronic Components

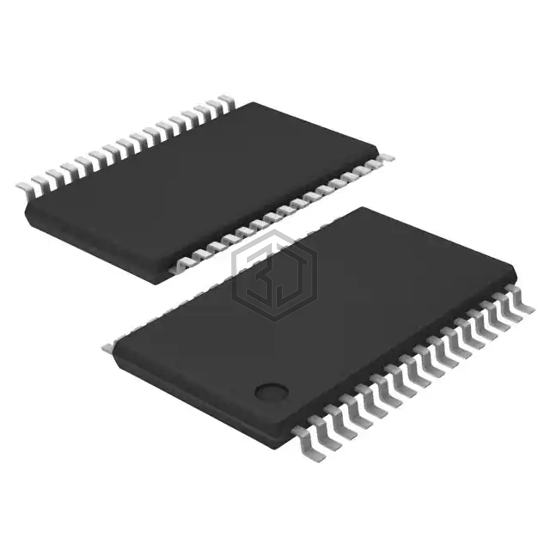

IC MTR DRV BIPOLAR 10-34V 32SSOP
AN44066A-VF is a PMIC - Motor Drivers, Controllers manufactured by Panasonic Electronic Components. IC MTR DRV BIPOLAR 10-34V 32SSOP. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 120°C (TJ), voltage - supply 10V ~ 34V, package / case 32-SSOP (0.240", 6.10mm Width).
In Stock: 2,486
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | Parallel |
| Technology | Power MOSFET |
| Step Resolution | 1, 1/2, 1/8, 1/16 |
| Applications | General Purpose |
| Current - Output | 800mA |
| Voltage - Supply | 10V ~ 34V |
| Voltage - Load | 10V ~ 34V |
| Operating Temperature | -20°C ~ 120°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 32-SSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 32-SSOP |
AN44066A-VF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TLE42062GXUMA2 | Infineon Technologies | IC MOTOR DRIVER 8V-18V 14DSO | 92% | View |
| TLE4206-2GXUMA2 | Infineon Technologies | BRUSH DC MOTOR CONTROLLER, 1A | 92% | View |
| NJM3777E3 | Nisshinbo Micro Devices Inc. | IC MTRDRV BIPLR 4.75-5.25V 24EMP | 87% | View |
| NJM3777E3-TE2 | Nisshinbo Micro Devices Inc. | IC STEPPER MOTOR DVR DUAL 24EMP | 87% | View |
| MP6527GF-Z | Monolithic Power Systems Inc. | 40V, 0.8A, 10-CHANNEL, HALF-BRID | 85% | View |
| TLE4207G | Infineon Technologies | TLE4207 - INTEGRATED HALF-BRIDGE | 75% | View |
Submit your RFQ for AN44066A-VF and get a quote within 24 hours.
