Panasonic Electronic Components
IC REG CHARG PUMP INV SSMINI5-F2

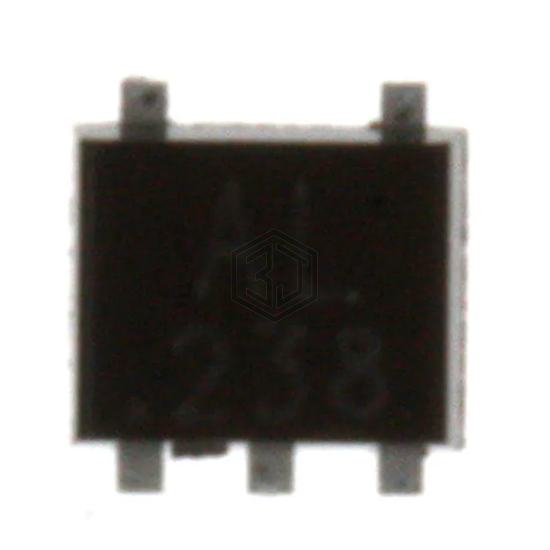

AN1201SM-TXL is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Panasonic Electronic Components. IC REG CHARG PUMP INV SSMINI5-F2. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 85°C (TA), package / case 6-SMD (5 Leads), Flat Lead, output type Fixed.
In Stock: 4,514
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Ratiometric |
| Output Configuration | Negative |
| Topology | Charge Pump |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2V |
| Voltage - Input (Max) | 3V |
| Voltage - Output (Min/Fixed) | -Vin |
| Voltage - Output (Max) | - |
| Current - Output | - |
| Frequency - Switching | 125kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD (5 Leads), Flat Lead |
| Supplier Device Package | SMINI-5DA |
AN1201SM-TXL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADM8829ARTZ-REEL7 | Analog Devices Inc. | IC REG CHARG PUMP INV 25MA SOT23 | 64% | View |
| ADM8828ARTZ-REEL7 | Analog Devices Inc. | IC REG CHARG PUMP INV 25MA SOT23 | 64% | View |
| ADM8829ARTZ-REEL | Analog Devices Inc. | IC REG CHARG PUMP INV 25MA SOT23 | 64% | View |
| ADM8829ART-REEL | Analog Devices Inc. | IC CHRG PUMP INV SW/CAP SOT23-6 | 64% | View |
| NJU7665CF-TE1 | Nisshinbo Micro Devices Inc. | IC REG CHARG PUMP INV 10MA SOT23 | 60% | View |
| NJU7665BF-TE1 | Nisshinbo Micro Devices Inc. | IC REG CHARGE PUMP INV 5MA SOT23 | 50% | View |
Submit your RFQ for AN1201SM-TXL and get a quote within 24 hours.
