Panasonic Electronic Components
CAP ALUM POLY 12UF 20% 80V SMD

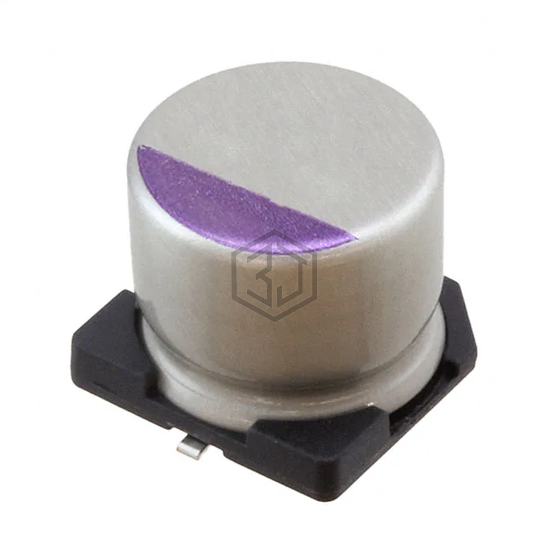

80SXV12M is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 12UF 20% 80V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 80 V, package / case Radial, Can - SMD.
In Stock: 3,168
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 12 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 60mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 17 mA @ 120 Hz |
| Ripple Current @ High Frequency | 340 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Submit your RFQ for 80SXV12M and get a quote within 24 hours.
