Panasonic Electronic Components
CAP ALUM POLY 100UF 20% 6.3V SMD

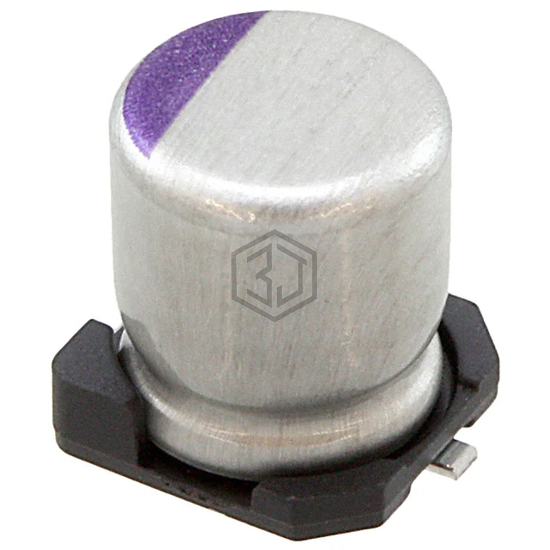

6SVPC100M is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 100UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 9,023
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 30mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 107.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.15 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| APXD6R3ARA101MF61G | United Chemi-Con | CAP ALUM POLY 100UF 20% 6.3V SMD | 96% | View |
| PCS0J101MCL9GS | Nichicon | CAP ALUM POLY 100UF 20% 6.3V SMD | 91% | View |
| A768MS107M1HLAE024 | KEMET | CAP ALUM POLY 100UF 20% 50V SMD | 79% | View |
| MAL218597607E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 100UF 20% 25V SMD | 75% | View |
| A768MS107M1JLAE027 | KEMET | CAP ALUM POLY 100UF 20% 63V SMD | 75% | View |
| 875105344010 | Würth Elektronik | CAP ALUM POLY 100UF 20% 16V SMD | 68% | View |
Submit your RFQ for 6SVPC100M and get a quote within 24 hours.
