Panasonic Electronic Components

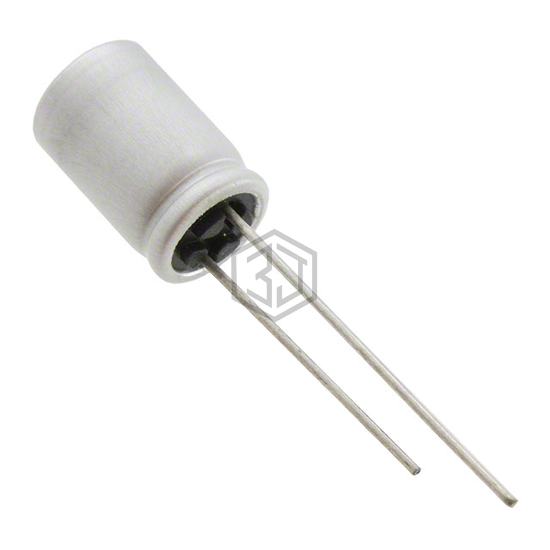

CAP ALUM POLY 470UF 20% 6.3V T/H
6SEPC470ME+TSS is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 470UF 20% 6.3V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 7,283
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 20mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 148.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.97 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
6SEPC470ME+TSS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPC7H471MP26308F5 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 78% | View |
| 477ULR6R3MEF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 470UF 20% 6.3V T/H | 78% | View |
| 477ULR010MFF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 470UF 20% 10V T/H | 61% | View |
| APSA100ETD471MJB5S | United Chemi-Con | CAP ALUM POLY 470UF 20% 10V T/H | 60% | View |
| 477UER2R5MEF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 470UF 20% 2.5V T/H | 59% | View |
| 477UER016MFH | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 470UF 20% 16V T/H | 50% | View |
Submit your RFQ for 6SEPC470ME+TSS and get a quote within 24 hours.
