Panasonic Electronic Components
CAP ALUM POLY 470UF 20% 6.3V T/H

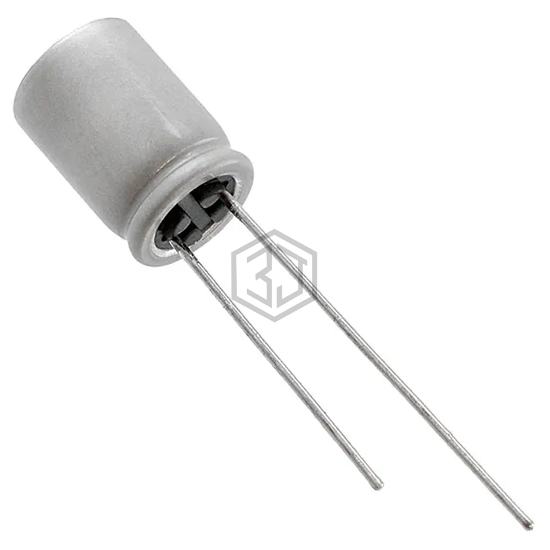

6SEP470M is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 470UF 20% 6.3V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 6,712
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 15mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 210.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 4.21 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 6SEP470M+TSS | Panasonic Electronic Components | CAP ALUM POLY 470UF 20% 6.3V T/H | 100% | View |
| PLS0J471MDO1TD | Nichicon | CAP ALUM POLY 470UF 20% 6.3V T/H | 91% | View |
| UPR0J471MP26308R | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 91% | View |
| 870235174002 | Würth Elektronik | CAP ALUM POLY 470UF 20% 6.3V T/H | 82% | View |
| 2SEPC470MZ+TSS | Panasonic Electronic Components | CAP ALUM POLY 470UF 20% 2.5V T/H | 79% | View |
| APS-100ELL471MJC5S | United Chemi-Con | CAP ALUM POLY 470UF 20% 10V T/H | 73% | View |
Submit your RFQ for 6SEP470M and get a quote within 24 hours.
