Panasonic Electronic Components

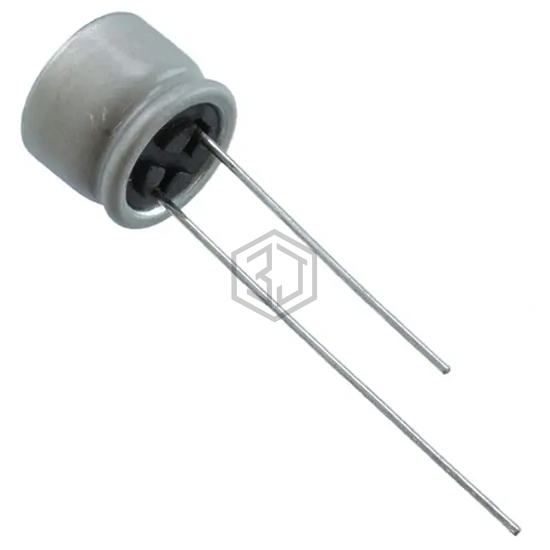

CAP ALUM POLY 150UF 20% 6.3V T/H
6SEP150M+TSS is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 150UF 20% 6.3V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 305
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 35mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 128 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.56 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 4SEP150M+TSS | Panasonic Electronic Components | CAP ALUM POLY 150UF 20% 4V T/H | 70% | View |
| PLX1C151MCL1 | Nichicon | CAP ALUM POLY 150UF 20% 16V T/H | 65% | View |
| 157ALG035MFBJ | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 150UF 20% 35V T/H | 65% | View |
| RR70J151MDN1 | Nichicon | CAP ALUM POLY 150UF 20% 6.3V T/H | 55% | View |
| 20SEP150M+T | Panasonic Electronic Components | CAP ALUM POLY 150UF 20% 20V T/H | 54% | View |
| APS-200ELL151MJC5S | United Chemi-Con | CAP ALUM POLY 150UF 20% 20V T/H | 54% | View |
Submit your RFQ for 6SEP150M+TSS and get a quote within 24 hours.
