Panasonic Electronic Components
CAP ALUM POLY 68UF 20% 63V T/H

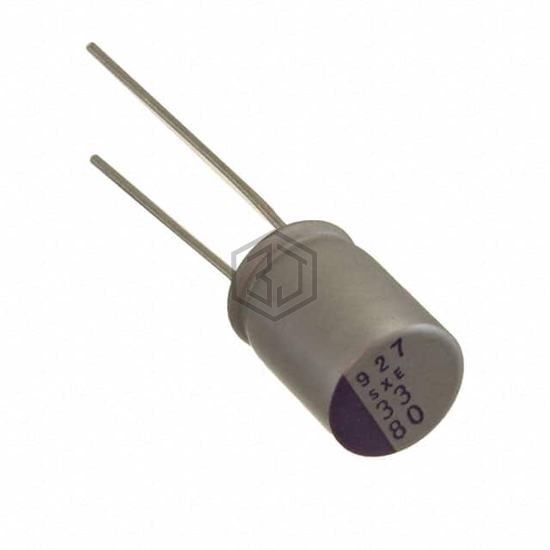

63SXE68M is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 68UF 20% 63V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 25mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 51.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.03 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
